The De Lisle "Commando" carbine
page still partly under construction
Whilst neither a training weapon nor a small-bore conversion,
this arm is nonetheless a noteworthy conversion of a Short
Magazine Lee-Enfield Rifle (S.M.L.E.)
It is also unusual in that the conversion entailed an increase
in calibre rather than reduction, albeit from the .303-inch centre-fire
rifle round to the .45- calibre Colt Automatic pistol round.
The carbine design was conceived at Dagenham (the Essex home of
the Ford Motor Company) by William G. de Lisle and Sir Malcolm
Campbell (famous World Land and Water Speed record contender and
holder, and father of Sir Donald Campbell) specifically for covert
operations, such as those organised by the British Special Operations
Executive (SOE). Trials of this carbine were undertaken in 1943, and
de Lisle had successfully applied for a patent, number 579,168 issued
on 8th. May 1943, for the specific design of the silencer, although
the principle of a baffled silencing system had been used by Hiram Maxim
many years earlier.
The assembly of the weapon was a fastidious task involving the careful
choice of tolerances between parts and small but critical modifications
to render the action as quiet as possible in operation. Even the underside
of the bolt handle had a recess drilled to accommodate a rubber pad
which prevented the customary loud 'clunk' given by the striking of
the handle against the butt socket when the bolt was closed quickly.
Being largely deLisle's project, the carbine was prototyped by his
team at Dagenham and subsequently manufactured, by Sterling Armament,
in numbers probably rather less than the originally contracted figure
of five hundred; it has been suggested that as few as 120 were forthcoming.
The early prototype models used a steel moderator casing, which was
given a phosphated finish. Sterling production utilized a blacked alloy
casing.

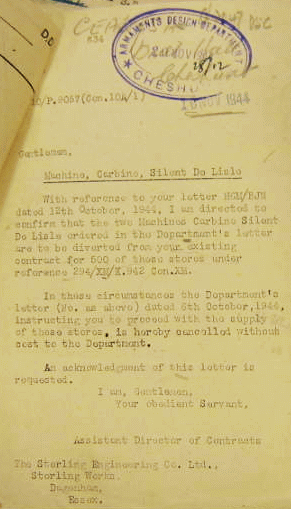

of cancellation letter by courtesy of the Pattern Room Library now resident
at the Royal Armouries Museum, Leeds.
Around mid 1943, the carbine was compared with a silenced version of
that famous and reliable sub-machine gun - the Sten. The de Lisle product
was, however, initially deemed not to be as quiet as the Sten equivalent
although, by early 1944, a further trial of two submitted carbines gave
rise to an appraisal which stated that "the guns appeared to
be less noisy than the Sten [Mk.II (S)] and gave a smaller
group [5 rounds], the best group being 1¾" x 1"
at 20 yards, as against the best Sten group of 4" x 2½"
at 20 yards." Large batches of ammunition were fired through
both the Sten and the de Lisle, with one run of 5,000 rounds proving
that, whilst coking of the baffles with powder residue caused silencer
disassembly difficulty and cleaning was required after a very few hundred
rounds had been put through the weapon, the system of solid offset baffling
through a comparatively large volume gas containment tube, where the
bullet suffered no physical contact with any part of the suppression
components, worked considerably better than some had expected.
Eventually, the design evolved to be almost as quiet as the equivalently
purposed "Welrod" silenced pistol of the same calibre, although
that very specialist side-arm held only very short range capability
and utilised rubber and textile baffles through which the bullet was
fired; these required replacement after the firing of but a few rounds.
In 1957 the "de Lisle" was reappraised with a view to "
its possible use in Malaya". It was noted then that the
carbine "is designed fundamentally as a silent carbine, and
is NOT a carbine fitted with a silencer". The report went
on to say that the 'de Lisle' was then considered an ideal weapon for
silently dealing with any sentries discovered during jungle patrolling
operations. There are certainly reports that the weapon was issued in
this theatre, as has been the case in Northern Ireland and indeed Korea.
There have even been claims for the carbines believed usage in more
recent times, although these are unsubstantiated.
Image courtesy of The Infantry and Small Arms School Corps
(SAS C) Weapons Collection
The cutaway moderator illustrates the baffle arrangement. The baffles
are supported by two rods horizontally positioned either side of the
bore-line ( the right hand rod is here visible). The barrel is of the
order of 9 inches in length, bell-mouthed, and is accommodated entirely
within the perforated section of the moderator tube immediately in front
of the action body. The rear-sight fitted is that of the Lanchester
submachine gun. The magazine shown could be replaced with an extended
version with a capacity of twenty rounds.
The conversion consisted of removal of the .303 calibre rifle barrel
and magazine followed by replacement with a bell-mouthed modified .45
calibre Thompson sub-machine gun
barrel and modification of the magazine way to accommodate a .45 auto
pistol magazine from the Colt 1911 model. The final addition of one
of the most efficient moderating systems ever devised, resulted
in a short and silent arm considered to be effective beyond expectation.
The manner in which, on many of the carbines, the bolt was shortened
and the breech-end of the barrel brought rearwards into the original
.303 receiver of the S.M.L.E. No.1 being converted, is reminiscent of
the configuration of the post-war training and target
Enfield Rifle No.8. in .22RF.
Original testing included
trials with a down-loaded .303 cartridge, possibly loaded with pistol
type bullet-heads, and 9 mm Parabellum round as well as the finally
selected Colt .45 Auto cartridge, which was proven to have "the
most suitable ballistics" and "the best residual
striking energy". Several prototype carbines were constructed
with phosphated steel silencer bodies, prior to the adoption of the
weight-saving aluminium version finally put into production with Sterling
Armament. An example is shown below, illustrated by courtesy of the
Trustees of the Pattern Room Collection. This prototype was not yet
fitted with the rubber bolt-closing quitening pad eventually added into
a drilling in the underside of the bolt handle. The aforementioned pad
prevented the notably audible metallic clonk, familiar to the firer
of any Lee-Enfield, made as the bolt handle connected with the receiver
body socket as the bolt was closed.
The quite basic fabricated
sights fitted to this prototype are probably "in-house" manufactured,
rather than the Lanchester sub-machine gun sights which were used on
the production de Lisle silenced carbine. The rear-sight is almost akin
to those seen on cheap air and small-bore sporting rifles of the day.
Apart from it being a conversion of the S.M.L.E., a further justification
for inclusion of this full-bore service weapon, within our training
and miniature-calibre remit, is that de Lisle did perceive the need
for a lighter, handier and quieter weapon for specialist and even closer-quarter
use. To that end, he designed and built at least two .22 inch rim-fire
calibre prototypes along the same lines as his .45 calibre carbine.
Although these small-bore weapons undertook basic trials, it is not
known whether any went into action, but this prospect is not entirely
impossible. One example remained in the care of the Imperial War Museum
after the second World War, and was subsequently passed to the National
Army Museum.
We are able to show images of Geoffrey deLisle's own .22RF carbine, which arm was retained by him for many years prior to its being handed by a generous purchaser to the National Army Museum for safekeeping. Sadly, all that is now publicly available to researchers is this pair of photographs, by kind permission of the Museum's trustees. The whereabouts of the carbine are now uncertain.
The carbine was hand built on the action of the ubiquitous Browning semi-automatic sporting rifle. A fairing-piece was added, below the forward part of the action, possibly to support the rear of the fore-end and to protect the cocking-piece's modified and protruding operating flange in the ejection port. It is fastened to the front of the trigger-guard with one screw. The rifle was especially stocked with high-quality walnut and the fore-end and pistol-grip finely chequered. A pair of figure-of-eight style split mounting brackets supported a telescope akin to those from the Evans stable occasionally fitted to the Pattern '14 Enfield No.3T sniper rifles ised in the First World War. Many of thes latter rifles and scopes again saw service in the 1939-45 War, but such telescopes as these had also been sold both commercially and as war surplus between the two major conflicts.

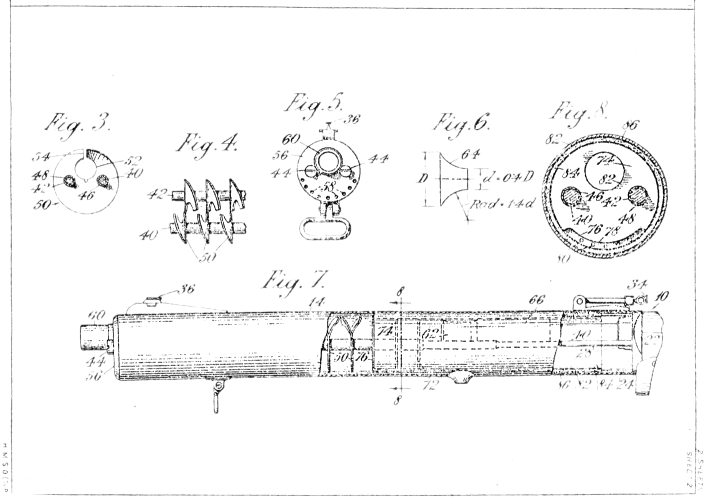

Below are two outline and sectioned drawings associated
with the specification for the SMLE based .45 calibre de Lisle carbine and its patent.
An apocryphal tale of one trial of the first DeLisle prototype is that the urgently required new weapon was completed overnight and taken to the London building of the Special Operations Executive (S.O.E.) first thing the following morning. Impatient to discover its capabilities, it was test-fired at pigeons on the roof of a building opposite. So quiet was the report, in the early part of the wartime "rush hour", that there was no reaction from passers-by. How the pigeons reacted was not reported; and neither is there any indication of concern for the fall of shot.
One should perhaps remember that significant quantities of metal of all types were then falling from the skies over England, and the odd .45 calibre pistol round, on a decaying trajectory, even had it been spotted, may barely have raised an eyebrow. Health and safety considerations were at the time hardly in the fore-front of general thinking. Allegedly, the carbine was immediately despatched to the continent for further assessment (perhaps even a practical trial), and further examples ordered on the spot.
However, as with many such anecdotes, there is an element of truth in the above story, but the veracious, and only marginally less thought-provoking version, came from the horse's mouth. Interviewed by Mr. Ian Skennerton in 1981, William de Lisle related how during early "field-testing" of the suppressed carbines, they were fired at a large chimney across the road from the Wilkes gunsmith's premises near Piccadilly where prototyping was taking place*. The discharges were thereby proven to be "imperceptible" to those passing in the street below; the possibility of heavy hail notwithstanding!
* SPECIAL SERVICE LEE-ENFIELDS ... COMMANDO & AUTO MODELS - I. SKENNERTON - Small Arms Identification Series No.3
See also the Enfield Rifle
