Page still partly under construction - mainly imagery.
Dreibund was the name originally given to the Triple Alliance formed between Germany, Austria-Hungary and Italy between 1882 and the First World War ; however there followed a further triple alliance between Germany, Japan and Italy prior to the Second World War in 1939. Dreibund is literally a bund (union) of drei (three). Jugend Karabiner translates from German as "Youth Carbine".
The next two images can be rotated and zoomed, either as initially loaded or full-screen for higher definition.
This training rifle dates from the latter period, when such arms were usually intended for use by the young members of the Hitler Youth organisation .
DATA TABLE - ALL MEASUREMENTS AS VIEWED EXAMPLE |
||
FIREARM |
IMPERIAL |
(METRIC) |
| Designation or Type : | Military Style Cadet Rifle
|
|
| Manufacturer : | Not marked |
|
| Date : | ||
| Serial No : | 171 |
|
| Furniture : | Pale Walnut
|
|
| Action Type : | Turning bolt
|
|
| Nomenclature or main marks: | "Dreibund-jugendkarabiner"
|
|
| Calibre : | .22RF |
? mm |
| Weight : | ? ozs. |
? kgs |
| Length - Overall : | ? inches |
? cms |
| Length - Barrel : | ? inches |
? cms |
| Pull : | 13¾ inches |
? cms |
| Spare row : | - |
|

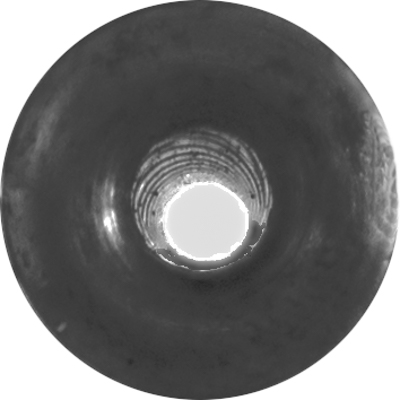

Rifling - No. of Grooves : |
6 |
|
| Rifling - Twist & Direction : | 1 turn in ? inches - RH |
1: ? cms |
| Rifling - Groove width : | 0.? inches |
? mm |
| Rifling - Land width : | 0.? inches |
? mm |
Rifling - Groove depth at muzzle : |
||
| Sight - Fore : | large barleycorn |
- |
| Sight - Rear : | V-notch in solid block |
- |
| Sight - Radius : | ? inches |
? cms |
