THE B.S.A. RALOCK and ARMATIC REPEATING MODEL RIFLES
The next stage of progression from the B.S.A. slide or "pump" action rifles, the Ralock was specifically aimed at the increasing number of imported semi-automatic .22RF repeating rifles, particularly those from the Unites States of America.
Introduced late in 1947 chambered for the .22 Short cartridge, of innovative design and superb quality, the rifle was expensive to manufacture, had limited magazine capacity, and was perhaps less reliable than other contemporary tubular magazine fed equivalents, the Winchester and Remington semi-autos in particular.
Although the 'Short cartridge' model of the rifle would hold a dozen cartridges. Although the rifle was, in 1949, lengthened by five inches to 43¾ ins., to accommodate the .22 Long Rifle cartridge, the available butt length still restricted the Long Rifle model to only eight rounds capacity.
Below: the elegant B.S.A. Ralock

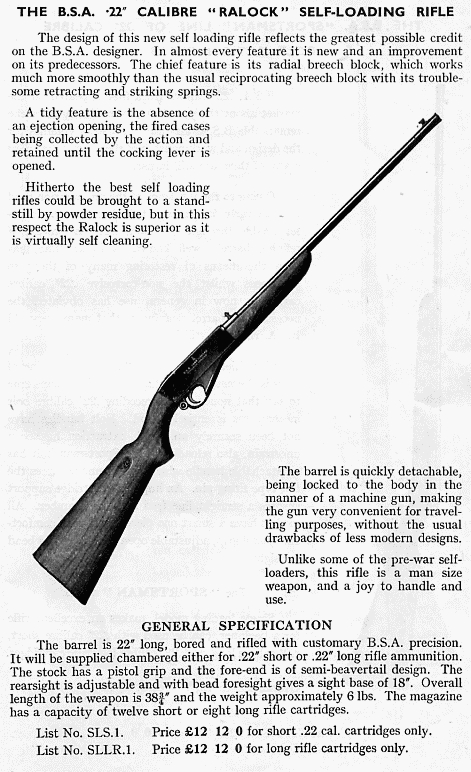

Below: the 1947 advertisement for the 'new' rifle
With a beautifully engineered, novel and quick take-down design, the retention of fired cartridge cases within the body, and an almost sealed action preventing the ingress of foreign matter, the Ralock should have been the sportsman's perfect rifle.
It is a reasonable inference that the name given to this rifle was derived from its radial locking action; thus Ralock
The action design comprised a blow-back breech-block in the form of a near quadrantal segment of a circle. This pivots at its base and is locked back - and the rifle cocked - when the integral trigger-guard and underlever is pulled down. This movement also opens the space beneath the action in which the fired empty cases are held; a very environmentally tidy rifle, this one! This should not be done too soon after rapid firing; if the just-fired cases are tipped straight into the hand, one is likely to drop them 'toute suite'.
Images of the action to follow

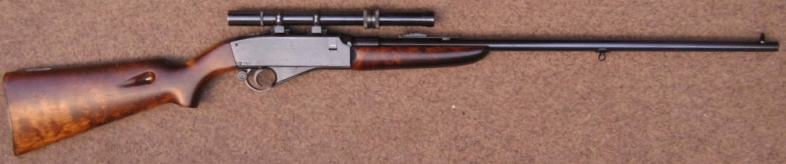

This rifle has been fitted with a Barr & Stroud telescope sight

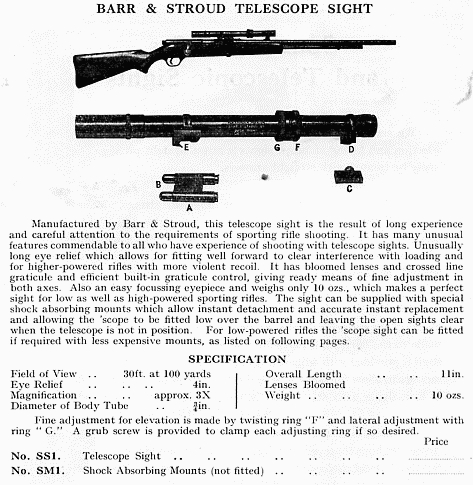

Below is a 1953 advertisement for that 'scope.
The Short cartridge model
A contemporary leaflet is shown below
***********************
THE B.S.A. ARMATIC
Not the most successful of products from the Birmingham Small Arms Co, but certainly with an acceptable performance and an economically priced rifle which found favour in the appropriate quarters

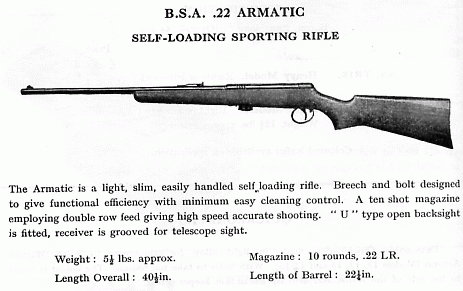

Below: A mid 1960s advertisement for the Armatic
Click on the diagram below to view at full original size
Another advertisement from 1965
The blurb states: " The Armatic brings you a self loading .22 with the accustomed BSA qualities of craftsmanship and design. Supplied with a ten-shot box magazine. Standard provision for fitting a telescope. Light, easy to maintain, its accuracy and ease of handling is [sic:are] impressive. See it at your local gunsmiths or write for descriptive folder.".
At this time, BSA Guns were based in Redditch, Worcestershire.
And a third example similar to the above, but with a silhouette of the rifle included.
