A RALEIGH WW1 MILITARY BICYCLE

with its Pattern 1917 Enfield rifle shown further down this page

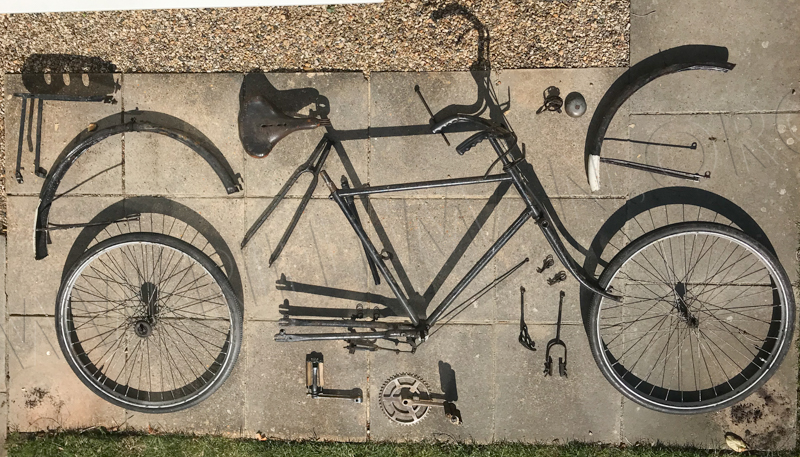

The original near-wreck initially disassembled

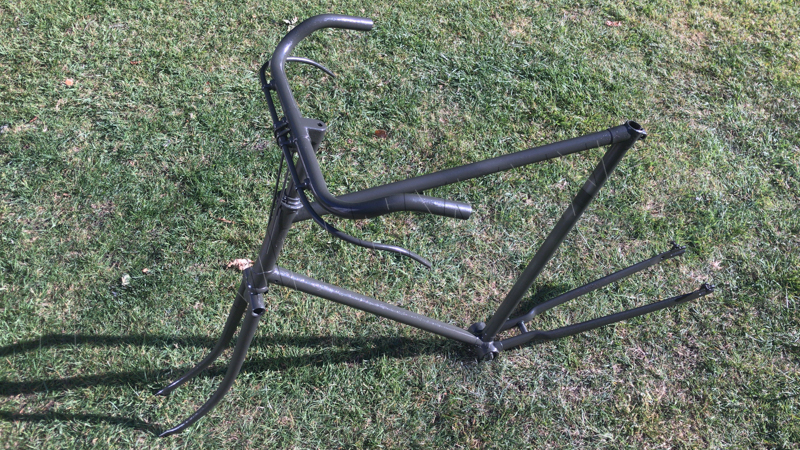

Frame cleaned up

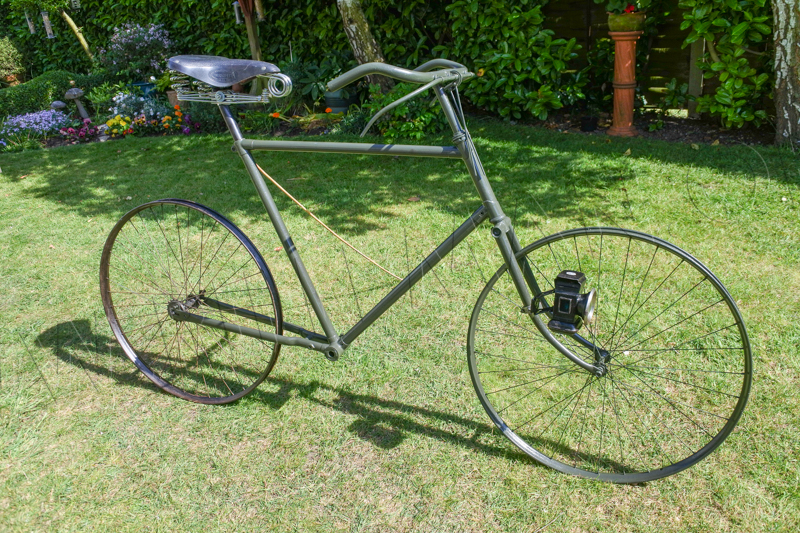

Test rigging of cleaned and painted components.

Progress temporarily halted, waiting delivery of more paint.

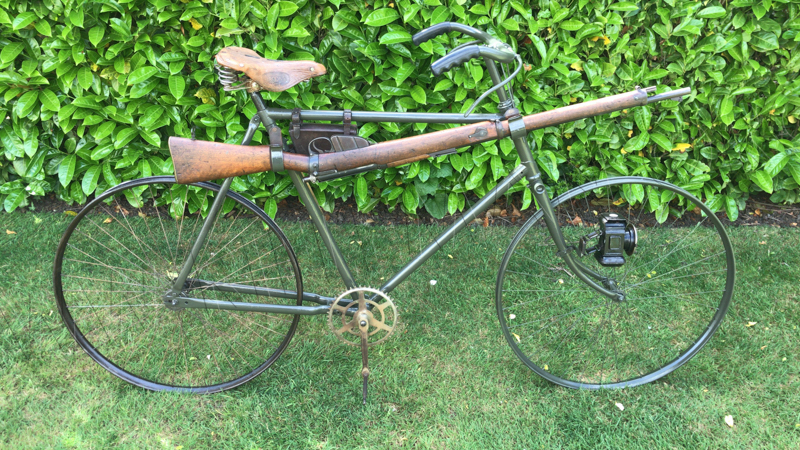

Rifle brackets fitted, and Boer War "Long" Lee-Enfield in place.

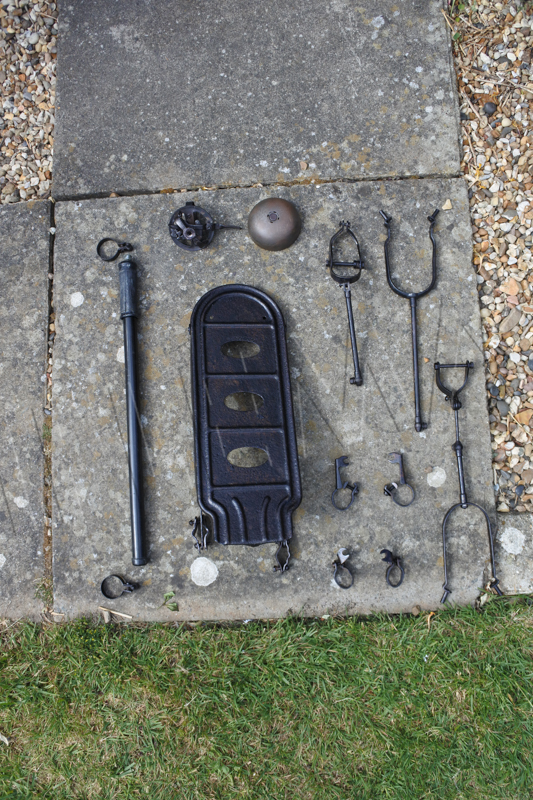

Remaining ancillary components cleaned and primed.

Brake fittings, rear carrier and Lucas "King of the Road" Challenger bell.

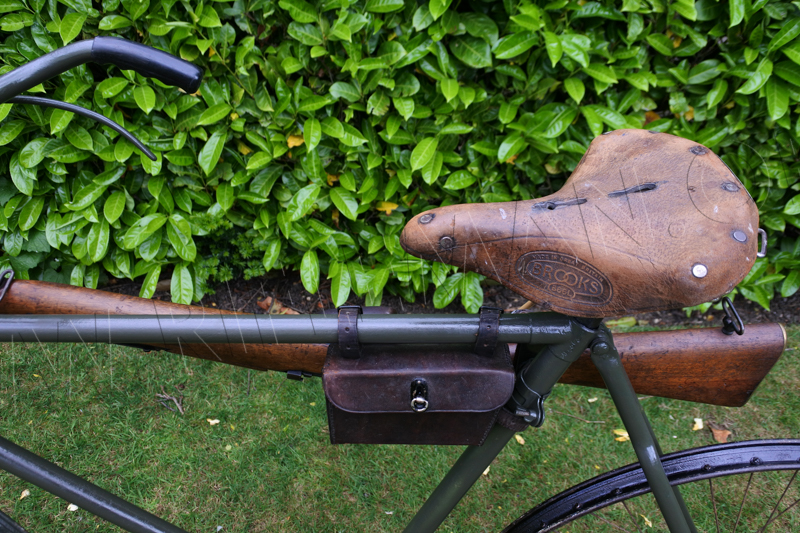

A more original Brooks saddle was located, as well as the early cross-bar tool bag.



Highly topical advertisement for Raleigh cycles

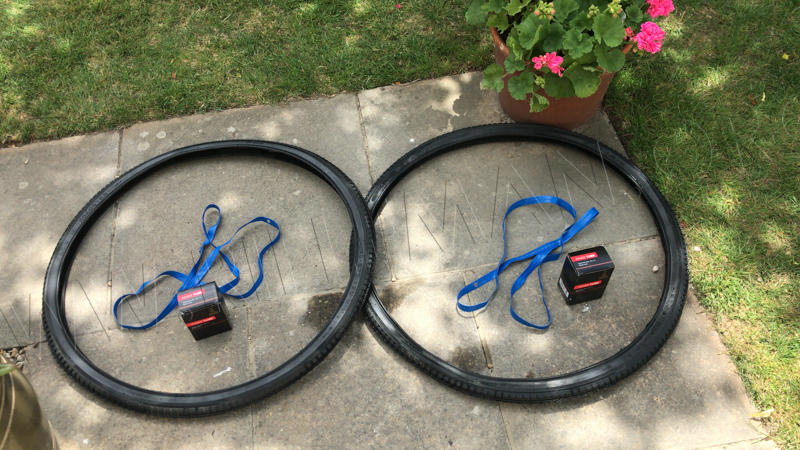

Arrival of new "vintage" tyres and tubes



The almost finished article, which rides well, but cannot stop until the brakes are fitted!

(Although firing a few rounds from the rifle may act as a retro-thruster)

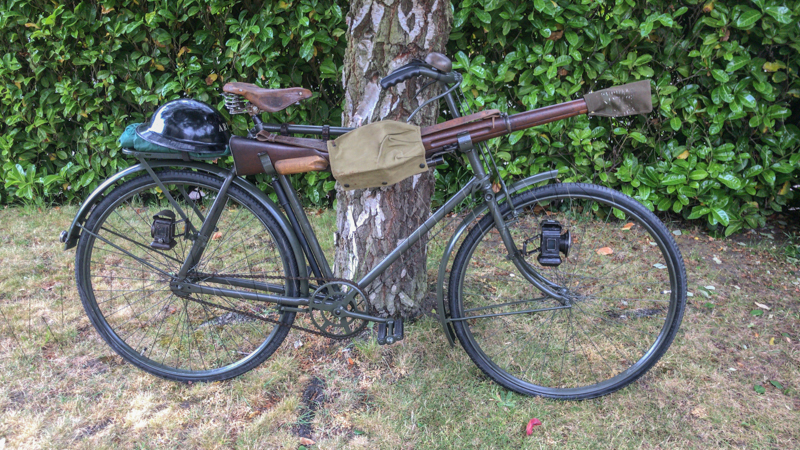

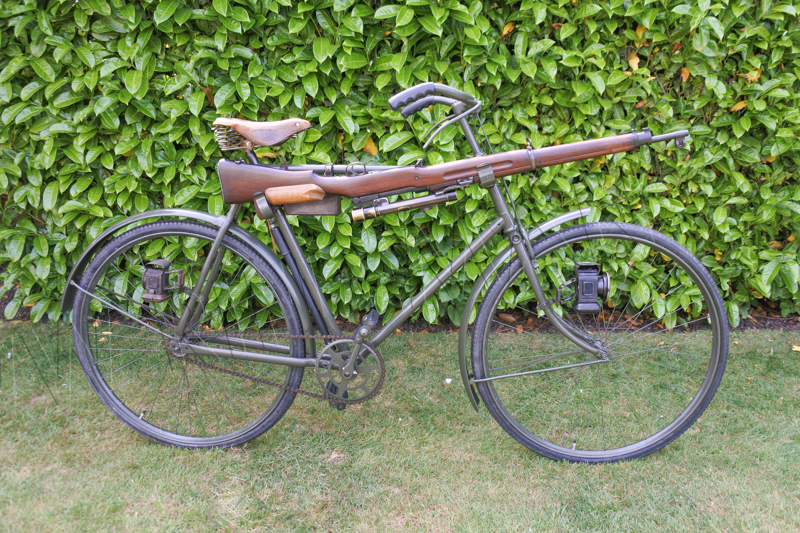

Ready for the off.

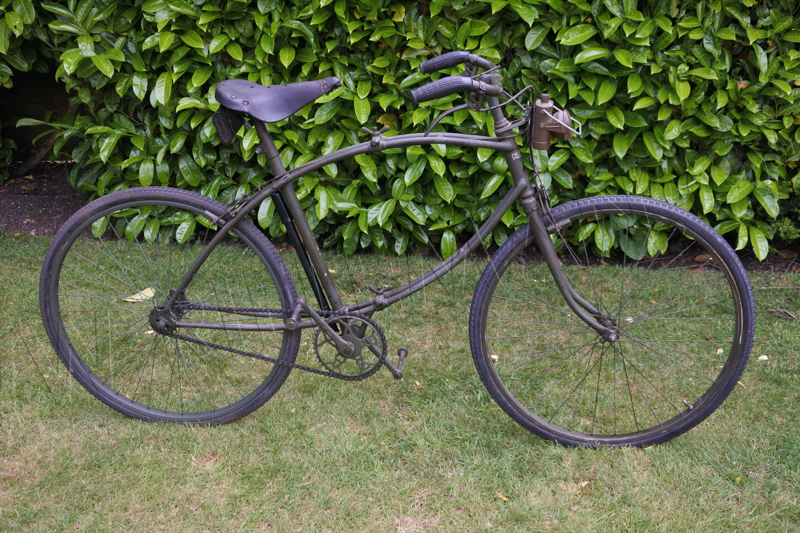

And, finally, for comparison, the later WW2 sibling,

the parachutist's folding BSA bicycle post renovation.



---



PATTERN '17 - 30.06 inch calibre U.S. ENFIELD "No.3T" SNIPER RIFLE

as carried on the subject WW1 bicycle.

____________________

Aldis Pattern 1916 telescopic sight fitment.



This is an all-original rifle and 'scope, bar the necessary replacement for the front telescope mount,

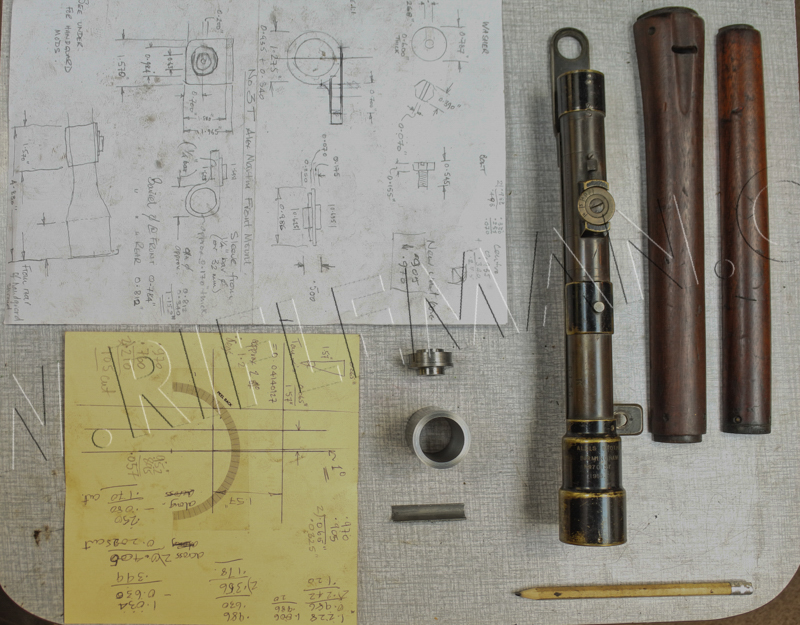

Plan of components for mount - and the three newly made sections

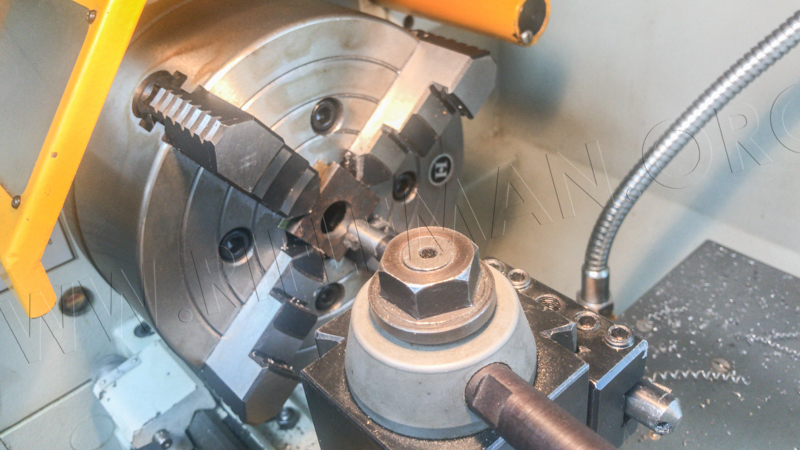

Offset boring of base plate.

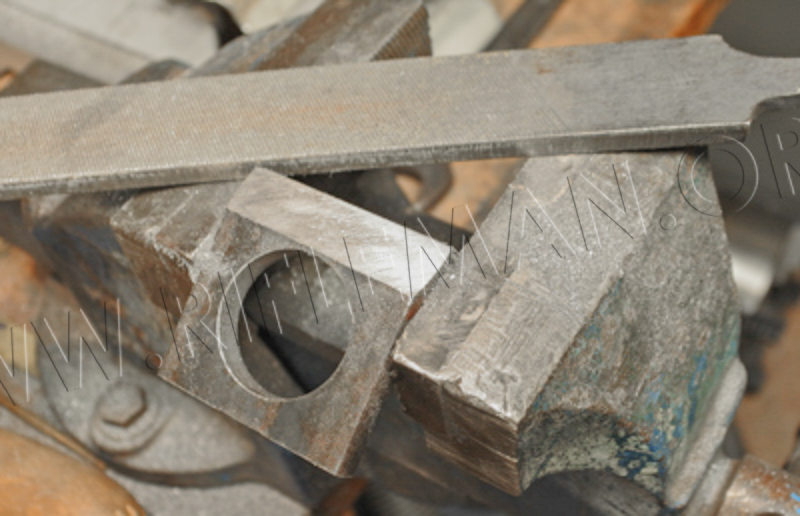

Fettling of eccentrically bored base plate.

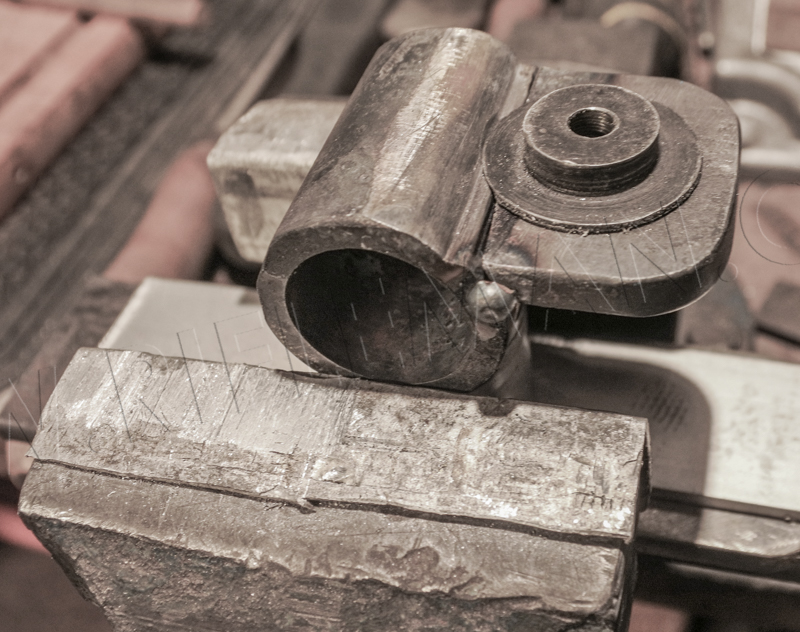

Newly turned flanged cylinder pressed into base plate,
and unit tacked to tapered-bore barrel sleeve.



Mk.I mount in situ, and video of Mk.II mount weld-up.

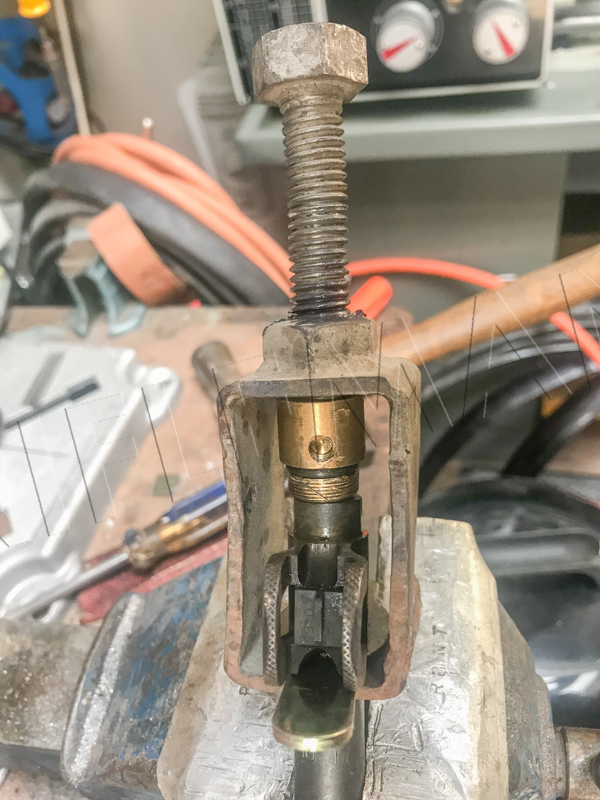

Removal of fore-sight for fitment of finished mount to barrel - (using ball-joint breaker!)

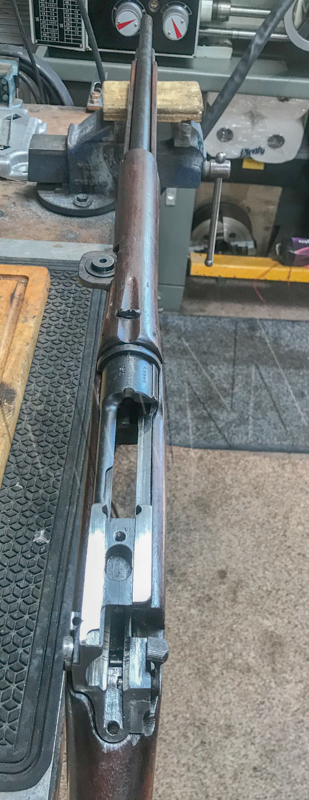

Part stripped rifle with new front mount in place.

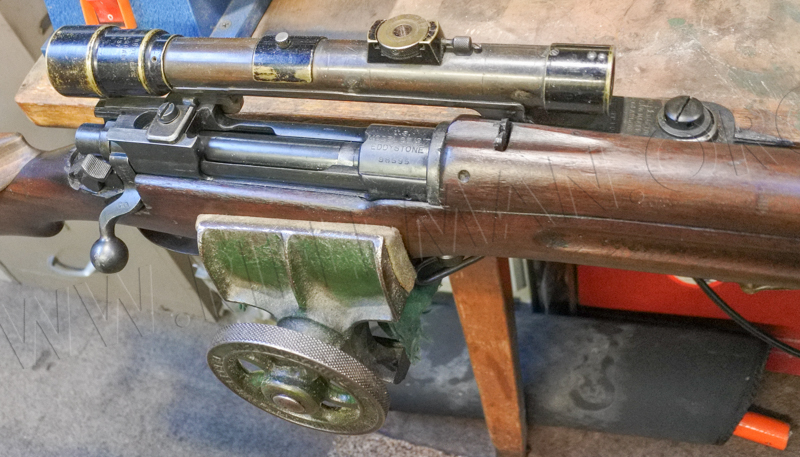

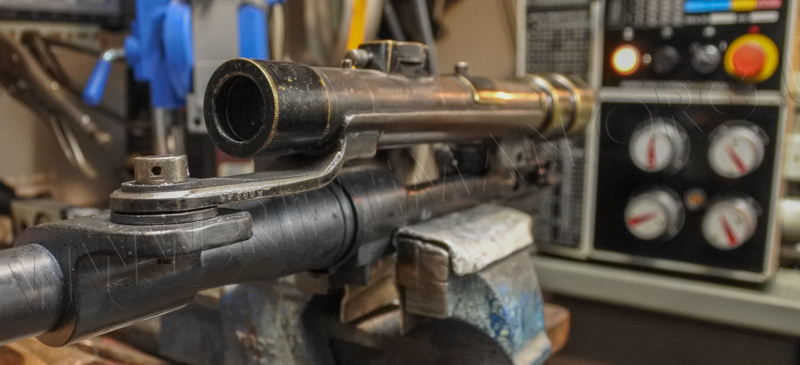

Telescope in place on original rear and new front mount,
with rare back-up "U"-notched rear-sight
protruding through woodwork of upper handguard

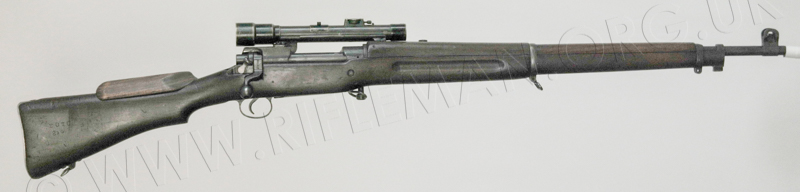

Finished rifle RHS

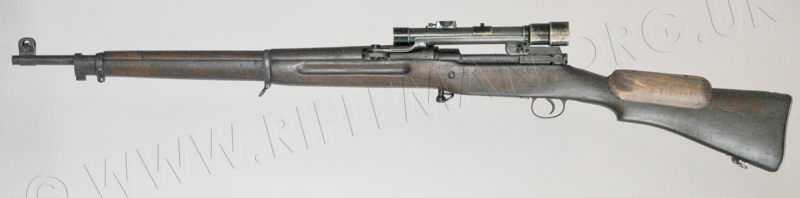

and LHS
